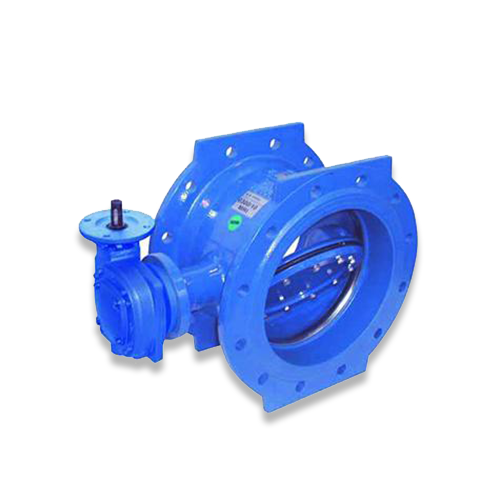

      BURIED BUTTERFLY VALVE

      Range:

      • DN 150 – 2000
      • PN 10 - 16 - 25 – 40

      Double eccentric resilient seated butterfly valve with bi-directional sealing , double flange long pattern series 14.

      • Suitable for Buried installation
      • Epoxy coated gearbox with watertight seal cover.
      • Enclosure protection IP68-8.
      • Mouting flange suitable for extention spindle according to EN   ISO 5210 F10/F14.

      Available as: Standard or Heavy Duty

      Applications: Water Irrigation

      Features

      • Performance and design according to EN1074-1 and 2,  EN593
      • Face to Face dimension according to EN 558 e ISO 5752-14.
      • Flanges drilling in according to EN 1092-2 ISO 7005-2; ANSI150
      • Double eccentric offset valve
      • EPDM automatic gasket design
      • Bi-directional tight closure
      • Hydraulic test in  accordance with the prescriptions EN 1074 1 and 2, ISO 5208 and EN 12266 leak    Rate A.
      • Marking  according EN 19

      Materials

      • Body and valve disc: ductile iron GJS500-7 EN 1563
      • Seat: stainless steel AISI316L
      • Shafts: in stainless steel AISI420B
      • Valve automatic gasket: EPDM
      • Primary and secondary shaft tightness: bronze bearings with double internal and external EPDM O-    rings sealing

      Gearboxes and actuators

      • AUMA Gearboxes Enclosure IP68-8 according to EN60529
      • Gearbox protected with additional 80 micron blue epoxy coating

      Corrosion protection

      • Body and valve disc epoxy powder coated in every part in accordance with EN14901 layer thickness min. 250 μm, freedom of pores by holiday test of 1 500 V after impact test at 5 joule, adhesion test min. 8 Mpa.

      The EUROSTOP Buried version is specifically designed for direct-buried installations, eliminating the need for costly concrete chambers. Featuring a specialized IP68 watertight gearbox and a reinforced protection system, this valve ensures smooth operation even when submerged or installed in aggressive soil conditions. It is the ideal choice for modern water distribution networks looking to optimize installation costs without compromising on safety.

      Applications: Water Irrigation

      Key Advantages

      • Watertight Integrity: Equipped with a dedicated IP68-8 gearbox featuring a sealed cover to prevent any water or debris ingress, ensuring functionality over decades of burial.
      • Cost-Efficient Installation: Designed to be buried directly in the soil, significantly reducing infrastructure costs by avoiding the construction of manholes or valve pits.
      • Enhanced External Protection: In addition to the standard 250 μm epoxy coating, the gearbox receives an additional 80-micron blue epoxy layer for maximum corrosion resistance.
      • Seamless Extension Connectivity: Features a mounting flange (ISO 5210 F10/F14) designed for quick and secure coupling with extension spindles and operating caps.

      Essential Accessories for Buried Valves

      To ensure a complete and functional installation, the EUROSTOP Buried version integrates perfectly with:

      • Telescopic Extension Units: To adjust the manovra point exactly to the ground level regardless of burial depth.
      • Operating Caps & Couplings: For easy operation via standard T-keys.
      • Surface Boxes To protect the top of the extension unit at the street or pavement level.
      • Position Indicators: Specialized headstocks with visual indicators for buried service.

      Applications

      • Urban Water Networks: Reliable isolation for underground pipelines in city streets.
      • Cross-Country Aqueducts: Long-distance pipelines where valve chambers are impractical.
      • Irrigation Schemes: Direct burial in agricultural fields with protection against moisture.
