      EUROSTOP Butterfly Valve Standard Version

      eurostop

      Range:

      • DN 150-2000
      • PN 10-16-25
      • PN 40 until DN 1400

      The EUROSTOP Butterfly Valve by PAM Saint-Gobain is engineered to provide uncompromising performance in water supply, irrigation, and industrial applications. Designed with a double eccentric configuration and a resilient seat, it ensures a 100% leak-proof bi-directional seal while significantly extending the operational life of the components.

      Key Advantages

      • Low Operating Torque: The double offset design reduces friction between the gasket and the seat during operation, allowing for smaller actuators and lower maintenance costs.
      • Superior Corrosion Resistance: All ductile iron components (Body and Disc) feature a high-quality epoxy powder coating (min. 250 μm) according to EN 14901 standards.
      • Maintenance-Free Sealing: The automatic EPDM gasket design ensures perfect tightness. The stainless steel AISI 316L seat is integrated into the body to resist erosion and wear.
      • Built for Durability: Compliant with EN 1074-1 & 2 and EN 593, ensuring long-term reliability in critical infrastructure.

      Versatile Configurations

      The EUROSTOP series is designed to adapt to any installation requirement:

      • Manual: Equipped with a high-efficiency gearbox and handwheel.
      • Motorizable: Ready for automation with a standard ISO 5210 top flange.
      • Motorized: Fully integrated with electric actuators (e.g., AUMA IP68) for remote control.
      • Buried Service: Specific configurations available with telescopic extension spindles and protection accessories for underground installation.

      Applications

      • Water Supply & Distribution: Potable water networks and pumping stations.
      • Irrigation: Large-scale agricultural water management.
      • Hydro-Power: Flow control and isolation in hydroelectric plants.
      • Industrial Plants: Reliable isolation for cooling and process water.
      Applications: Water Hydro Irrigation Industry

      Materials

      • Body and valve disc: ductile iron GJS500-7 EN 1563.
      • Seat: stainless steel AISI316L
      • Shafts: in stainless steel AISI420B
      • Valve automatic gasket: EPDM
      • Primary and secondary shaft tightness: bronze bearings
         with double internal and external EPDM O-rings sealing

      Features

      • Performance and design according to EN1074-1 and 2,  EN593
      • Face to Face dimension according to EN 558 e ISO 5752-14.
      • Flanges drilling in according to EN 1092-2 ISO 7005-2; ANSI150
      • Double eccentric offset valve
      • EPDM automatic gasket design
      • Bi-directional tight closure
      • Hydraulic test in  accordance with the prescriptions EN 1074 1 and 2, ISO 5208 and EN 12266 leak Rate A.
      • Marking  according EN 19

      Corrosion protection

      • Body and valve disc epoxy powder coated in every part in accordance with EN14901 layer thickness min. 250 μm.

      Gearboxes and actuators

      • AUMA Gearboxes Enclosure IP68-8 according to EN60529
      • Standard Actuator S2-15 min, 400 V -3 – 50Hz, IP68.8, KS protection and heater 230 V.

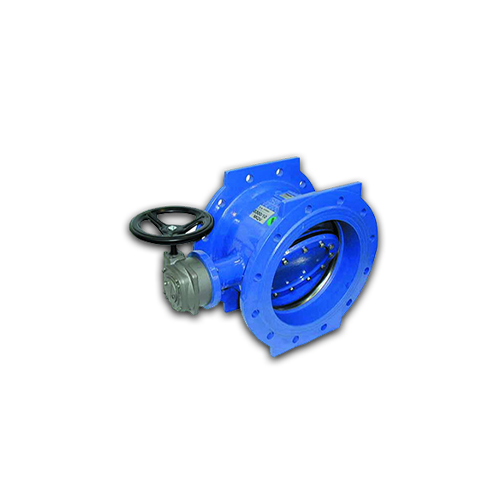

      Eurostop DN 800 PN 16
      Eurostop DN 800 PN 16
      Eurostop DN 800 PN 16
