      EUROSTOP BUTTERFLY VALVE EPOXY SEAT

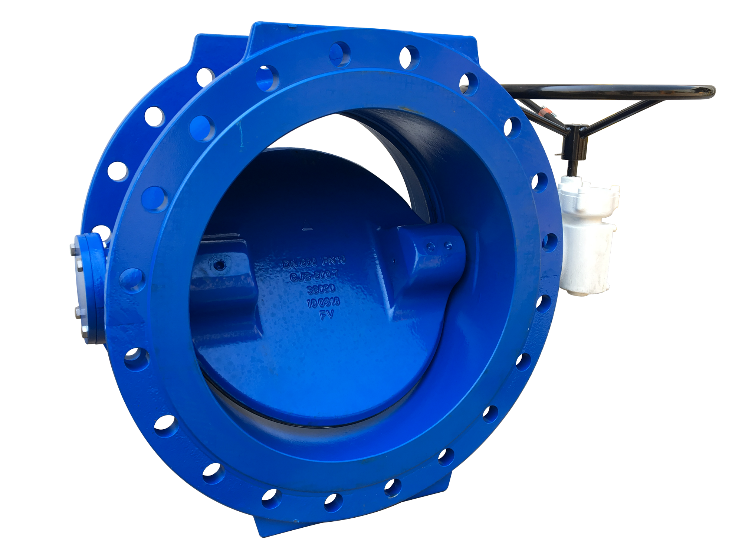

      New EUROSTOP double eccentric butterfly valve
      by Saint-Gobain PAM with integral epoxy seat special
      low frictions designed and suitable for hard water with
      sediments, limestone incrustations.

      Applications: Water Irrigation

      Technical features

      • Body and disc: Ductile iron epoxy coated 250m
      • Seat: epoxy seat
      • Shafts: Aisi 420
      • Bearings: self-lubricating bronze bearing
      • Seals: EPDM

      Versions

      • Manual
      • Motorizable/Motorized

      Design

      • Design standard: EN593
      • Performances: EN 1074
      • With flange ends on both sides acc. to EN 1092-2

      Applications

      • Potable water networks
      • Pumping stations
      • Irrigation networks
      • Hydropower

      The NEW EUROSTOP Epoxy Seat version introduces a streamlined, high-performance design to the PAM Saint-Gobain butterfly valve family. By integrating a precision-machined epoxy seat directly into the body, this valve offers an optimized solution that combines the proven double eccentric technology with a highly resistant sealing surface. It is designed to meet the needs of modern water networks looking for the perfect balance between technical excellence and cost-efficiency.

      Applications: Water Irrigation

      Key Advantages

      • Integrated Epoxy Seat: The seating surface is precision-machined directly into the high-quality epoxy coating of the body. This eliminates the need for a separate metal seat ring, reducing the risk of crevice corrosion.
      • Optimized Sealing Geometry: The combination of the double eccentric movement and the smooth epoxy surface ensures a perfect bi-directional seal with even lower friction than traditional designs.
      • Superior Adhesion: The epoxy coating is applied using state-of-the-art processes (min. 250 μm), ensuring maximum adhesion and resistance to the mechanical stresses of flow.
      • Maintenance-Friendly: The automatic EPDM gasket on the disc is easily replaceable, ensuring that the valve remains operational for decades with minimal intervention.

      Configurations

      The Epoxy Seat version is available for various installation requirements:

      • Manual: High-performance gearbox and handwheel for effortless operation.
      • Motorizable/Motorized: Standard ISO 5210 interface for seamless automation with electric actuators.
      • Customizable: Available with different accessories for chamber or buried installation.

      Applications

      • Potable Water Networks: Safe and reliable isolation for drinking water distribution.
      • Standard Irrigation Systems: Ideal for large-scale agricultural projects.
      • Utility Water Services: Efficient flow control for municipal water management.
      • General Water Transport: Cost-effective solution for long-distance pipelines.
