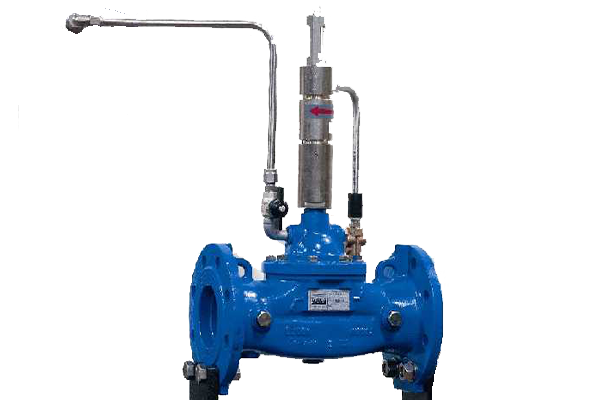

      FLOAT CONTROLLED MODULATING VALVE E2110-10

      E2110_10_500_500
      • DN 50-700
      • PN 10-16-25



      Designed to maintain a constant level in water tank or reservoir. Changes in water levels are registered by the modulating float pilot valve.

      This unit controls the progressive opening/closure of the main valve to keep the level constant within a range of 20 cm WH, regardless of the rate of flow.
      The main valve is usually installed at the foot of the storage tank, with the float pilot valve inside the tank, above the maximum level.
      The float pilot is completely made of stainless steel.
      An hydraulic syncronizer gives to the valve an high level of precision along the complete stroke.
      A single line (not included) connects the main valve with the float pilot valve.
      Additional features available:
      • electrically remote control on/off function
      • maintenance of minimum inlet pressure
      • anti-freeze option
      • maximum inlet pressure surge control

      Applications: Water Irrigation Industry
