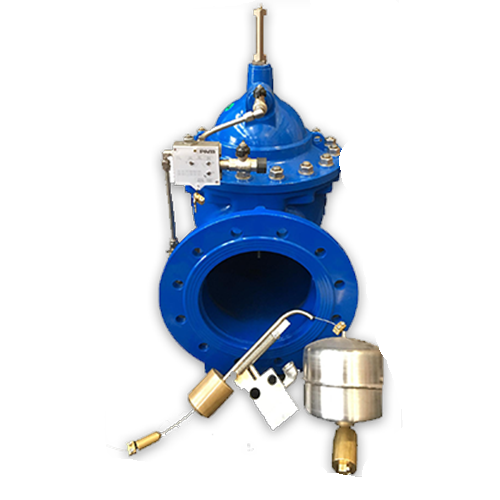

FLOAT-CONTROLLED ON/OFF VALVE

E2110_14_500_500

Designed to close feed to a storage tank at maximum
and to re-open at minimum level. The float control
pilot is remote mounted, normally in the tank above
maximum level.
Standard float rods allow adjustment of maximum and
minimum levels between 0,3 - 4,0 m (Additional float
rods for increased range available on request).
The float pilot is completely made of stainless steel
and its special construction is designed to avoid any
stall position of the obturator during the inversion phase

Applications: Water Irrigation Industry

Additional features available

• electrically remote control on/off function
• maintenance of minimum inlet pressure
• anti-freeze option
• maximum inlet pressure surge control
• rate of flow limiter.
