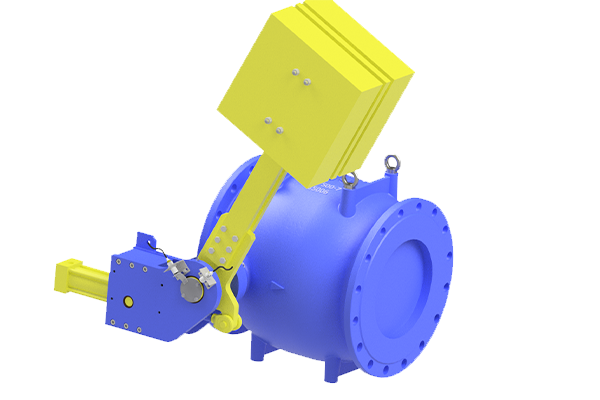

      HYDRAULIC OPERATED NEEDLE VALVE NGL

      ngl_hydraulic_operated_500_500

      Range:

      DN 100 – 1600
      PN 10 - 16 - 25 – 40

      The Hydraulic Operated NEEDLE VALVE NGL Valves is
      generally installed in Hydropower plants, flood
      control structures, irrigation facilities and free
      discharge draining of dams or reservoirs.

      Hydraulic actuator solutions:
      • Single acting hydraulic piston with counterweight
      • Double acting hydraulic piston

      Applications: Water Hydro Irrigation Industry

      FEATURES

      • Performance and design according to EN1074-5
      • Face to Face dimension according to EN 558 e Series 15
      • Flanges drilling in according to EN 1092-2 ISO 7005-2
      • Hydraulic test in  accordance with the prescriptions EN 1074 1 and 2, ISO 5208 and EN 12266  leak Rate A
      • Marking  according EN 19
      • Full range of cylinder to avoid cavitation
      • Hydraulic cylinder to maintain the main valve in closed position
      • Counterweight connected to the hydraulic cylinder, sized to allow automatic opening of the valve under the heaviest condition

      MATERIALS

      • Body ductile iron GJS500-7 EN 1563
      • Shaft: AISI 420
      • Shutter: AISI 304
      • Seal: Elastomer EPDM
      • Bush: Bronze CuSn12
      • Cilinder: AISI 304 (optional)
      • Counterweight: Carbon Steel epoxy coated

      CORROSION PROTECTION

      • Body and valve disc epoxy powder coated in every part in accordance with EN14901 layer thickness min. 250 μm
