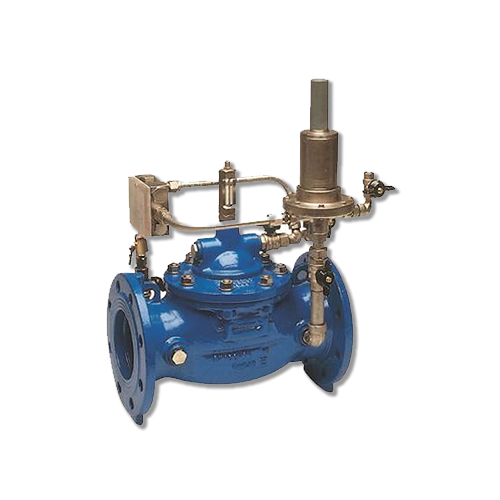

      FLOW CONTROL VALVE E2114-00

      e2114
      • DN 50 - 700
      • PN 10 -16 - 25



      Designed to maintain a constant rate of flow, regardless
      of fluctuation in system pressure.
      Calibrated orifice plate incorporated either in the inlet
      or the outlet flange of the valve (no modification of the face to face dimension).
      The unit is fitted with two pressure intakes, facilitating
      the on-site setting of flow rates using a differential
      pressure gauge (not supplied).
      Flow rates may be regulated for a fluid velocity in the inlet
      section of the valve between 1,0 and 2,5 m/s

      Applications: Water Hydro Irrigation Industry

      Suggested applications

      • limiting the maximum flow rate on a pump: to protect the same
      • limiting the rate of flow between two distribution networks operating at different pressures
      • limiting maximum flow rate to tanks and or filters

      Additional features available

      • electrically remote control on/off function
      • check feature
      • two or more flow rate stages, selected manually or electrically
      • reduction of outlet pressure to a lower value.
