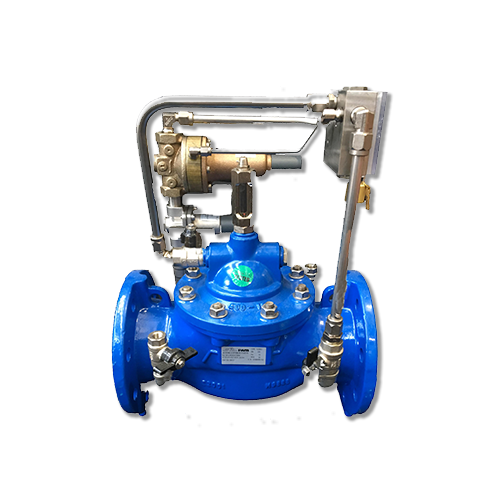

PRESSURE REDUCING AND SUSTAINING VALVE
E2115-02
E2115-02
Automatically reduces a higher inlet pressure to
a constant lower outlet pressure, regardless of
changing flow rate and/or varying inlet pressure.
Equiped with a pressure sustaining control which
prevents the upstream pressure from dropping
below a preset minimum.
Range of standard sustaining/reducing pilot valve:
• 1.4 - 12.0 bar
on request:
• 0.5 - 2.0 bar
• 7.0 - 21.0 bar.
Suggested applications
Suggested applications
• reducing high feed pressure on a distribution network by retaining minimum pressure in the feed line
• connecting two networks of different pressures, protecting the high pressure network against the demands of the low pressure network.
Additional features available
Additional features available
• electrically remote control on/off function
• check feature
• flow rate limiter
• maximum outlet pressure surge control.
